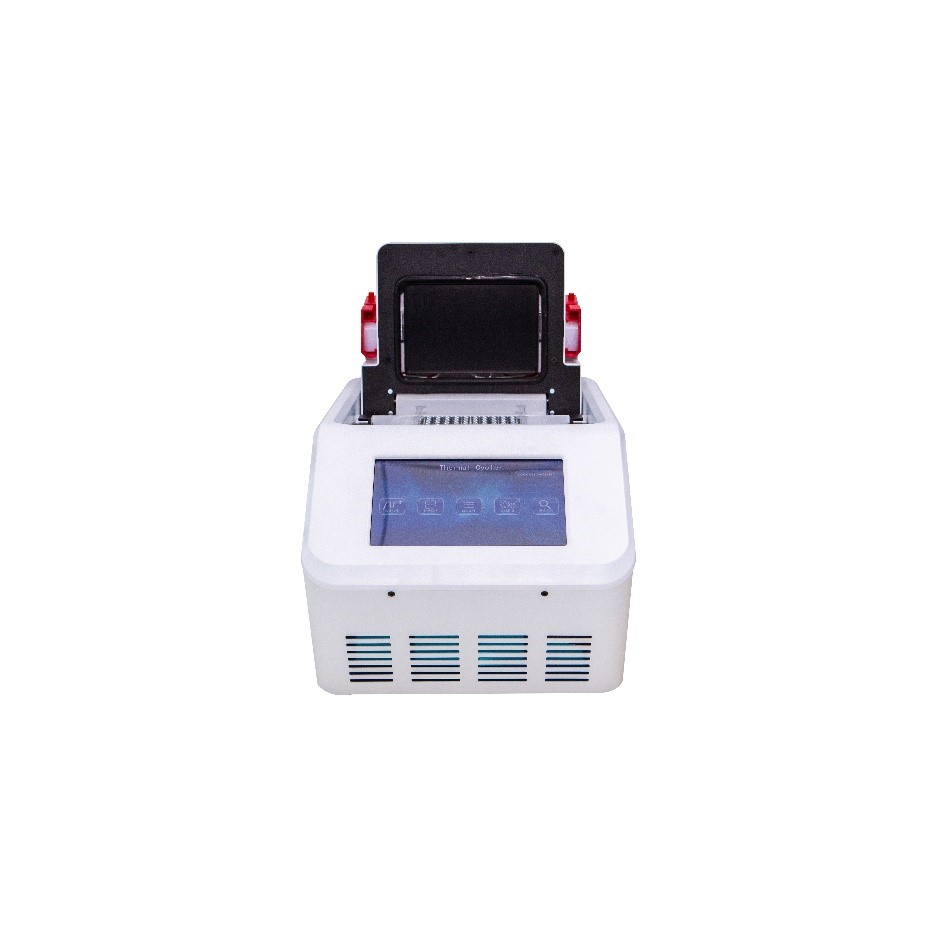

CAMO CMSM210 PCR instrument is a high-quality PCR instrument with multifunction of gradient, uniform cooling, U disk copy, Chinese and English bilingual switching, etc.
The instrument design focuses on product functionality and practicability. In order to better fit the bottom of the PCR tube, the arc design of the bottom of the module hole is adopted. This design can make the temperature of the sample in the tube more accurate and more uniform.
Features
Arc-bottom hole fits the bottom of the PCR tube well.
High-resolution capacitive touch screen, can also be operated with latex gloves.
With front wind and rear air outlet design, multiple PCR instruments can be placed side by side at a close distance, which greatly saves space on the table
User-friendly software system. The large memory can store 15,000 programs。
| CMSM210 PCR instrument | |
| Sample capacity | 96 x 0.2 ml tubes, 0.2 ml tube strips, or 1 x 96-well plate |
| Maximum ramp rate, °C/sec | 6 |
| Temperature range | 4–105°C |
| Temperature accuracy | ±0.5°C |
| Temperature uniformity | ±0.5°C |
| Input power | 220–240 VAC, 50–60 Hz;700 W |
| Display | 7'' CTP color touch screen |
| Port | 1 USB A |
| Memory | 15000 typical programs |
| Gradient | |
| Gradient accuracy | ±0.5°C |
| Row uniformity | ±0.5°C well-to-well |
| Gradient range | 30–100°C |
| Temperature differential range | Max.40°C |
